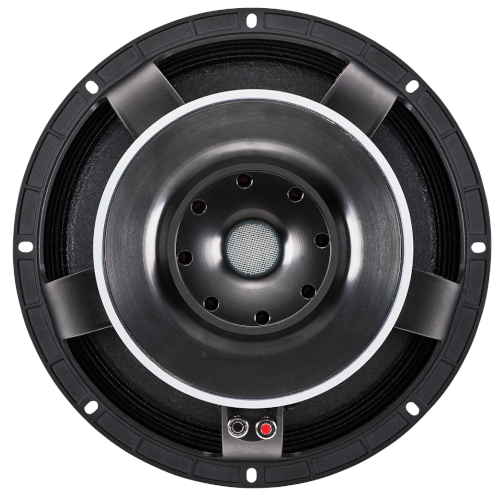

Celestion CF1230F 8 Ohm 12″ 500W Loudspeaker
£177.99
- Brand Celestion
- Size 12”
- 8Ω
- Magnet type Ceramic
A high quality product supplied by Lean Business Audio.
Visit our website for offers on 1000’s of audio products.
Worldwide shipping and Free Delivery on selected brands.
Out of stock
Email when stock available
Celestion CF1230F 8 Ohm 12″ 500W Loudspeaker
| CF1230F Specifications | |
| Nominal diameter | 305mm / 12in |
| Power rating | 500W |
| Continuous power rating | 1000W |
| Rated impedance | 8Ω |
| Sensitivity | 98dB |
| Frequency range | 50-3,000Hz |
| Chassis type | Cast aluminium |
| Magnet type | Ferrite |
| Magnet weight | 2.2kg / 75oz |
| Voice coil diameter | 75mm / 3in |
| Voice coil material | Copper clad aluminium |
| Voice coil diameter | 75mm / 3in |
| Former material | Glass Fibre |
| Cone material | Glass loaded paper (weather-resistant) |
| Surround material | Cloth-sealed |
| Suspension | Single |
| Gap height (Hg) | 8mm / 0.31in |
| VC winding height (Hvc) | 19mm / 0.75in |
| Parameters | |
| Sd | 530.93cm2 / 82.3in2 |
| Fs | 56.50Hz |
| Mms | 63.75g / 2.25oz |
| Qms | 4.33 |
| Qes | 0.342 |
| Qts | 0.317 |
| Re | 5.08Ω |
| Vas | 49.61l / 1.75ft3 |
| BI | 18.33Tm |
| Cms | 0.12mm/N |
| Rms | 5.23kg/s |
| Le (at 1kHz) | 0.74mH |
| Xmax | 7.5mm / 0.3in |
| Mounting Information | |
| Overall diameter | 315mm / 12.4in |
| Overall depth | 153mm / 6.0in |
| Cut-out diameter | 285.6mm / 11.24in |
| Mounting hole dimensions | 10mmx6.5mm / 0.39inx0.26in |
| Number of mounting holes | 8 |
| Mounting hole PCD | 294-300mm / 11.6-11.8in |
| Unit weight | 6.8kg / 14.9lb |
Why Choose Lean Business Audio?
50 years of experience of designing, building and supplying Home, Car and Professional Audio.
Huge stocks of leading loudspeakers and audio brands
KEF, Celestion, Eminence, WGS, Montage, BMS Speakers, Faital Pro, Eighteen Sound, Ciare
Low Worldwide shipping rates.
Free Delivery on selected brands with the UK.
Price matching.
For more information please contact us at: +44(0)1473 744089
Or Email us at: sales@lean-business.co.uk
| Weight | 5 kg |
|---|---|
| Brand | Celestion |
| Size | 12" |
| Magnet type | Ferrite |
