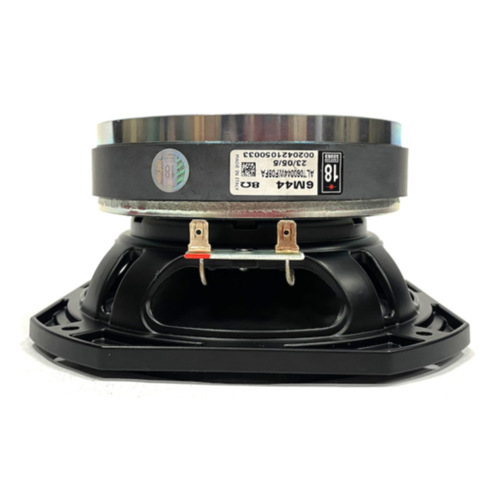

Eighteen Sound 6M44 16 ohm 6″ 200 watt Loudspeaker

Eighteen Sound 6M44 16 ohm 6″ 200 watt Loudspeaker

Key features:

• 44mm CCAW voice coil
• Optimized for horn radiation in small enclosures
• Hugh damping cone
• SDR for low distortion and medium clarity
• High Flux and heat dissipation capabilities

Product specification:

• Nominal Impedance: 16 Ω
• Nominal Power Handling1: 200 W
• Continuous Power Handling2: 350 W
• Sensitivity3: 95.0 dB Frequency Range 140 – 7000 Hz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: aluminum
• Winding Depth: 13.0 mm (0.51 in)
• Magnetic Gap Depth: 7.0 mm (0.28 in)

Thiele Small Parameters (8 Ohm parameters):

• Resonance Frequency: 102 Hz
• Re: 5.3 Ω
• Qes: 0.31
• Qms: 4.4
• Qts: 0.29
• Vas: 3.8 dm3 (0.13 ft3 )
• Sd 132.0 cm2 (20.46 in2 )
• η₀: 1.2 %
• Xmax: 2.25 mm
• Mms: 16.0 g
• Bl: 13.4 Txm
• Le: 0.32 mH
• EBP: 329 Hz

Mounting information:

• Overall Diameter: 162 mm (6.38 in)
• Bolt Circle Diameter: 170 mm (6.69 in)
• Baffle Cutout Diameter: 148.0 mm (5.83 in)
• Depth: 85 mm (3.35 in)
• Flange and Gasket Thickness: 13 mm (0.51 in)
• Net Weight: 3.4 kg (7.5 lb)
