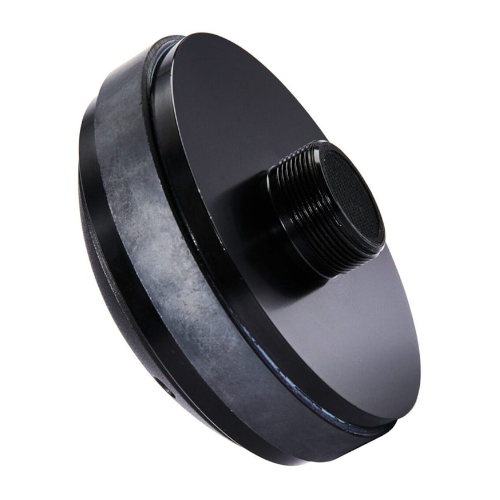

Celestion CDX1-1747 8 Ohm 1″ 60W Compression Driver
General Specifications:
- Power rating 60 W (rms)
- Nominal impedance 8Ω
- Sensitivity 110 dB
- Frequency range 1000-20000
- Voice coil diameter 1.7”, 44.4 mm
- Magnet type Ferrite
- Coil material Edgewound Copper Clad Aluminium
- Recommended min. crossover (12 dB/oct) 2000 Hz 12 dB/oct
- Diaphragm material Kapton
Mounting Information:
- Fitting Flange – 2 /3 M6 holes on 76/57.2, 3.0/2.224” PCD
- Overall depth 2.08”, 53 mm
- Overall width 4.72”, 120 mm
- Throat exit 0.1”, 25.4 mm
- Unit weight 5.1 lb, 2.3 kg
Key Features:
- 1″ exit, ferrite magnet compression driver with 1.75″ edgewound copper clad aluminium voice coil
- 60 W (rms) power handling (AES standard) and 110 dB sensitivity
- Sound Castle (TM) clamping ensures even pressure on diaphragm assembly for reduced distortion
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
- Smoother performance ideal for Funktion One, EAW, HK, Yorkville TOA and Commercial Audio replacements
- Price includes VAT
